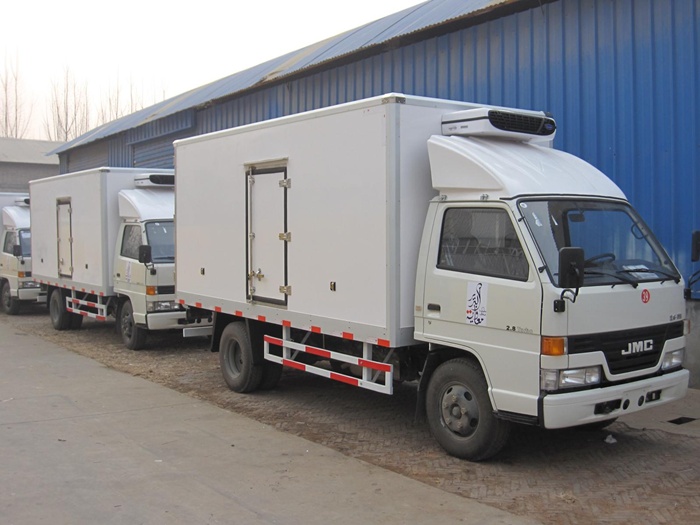

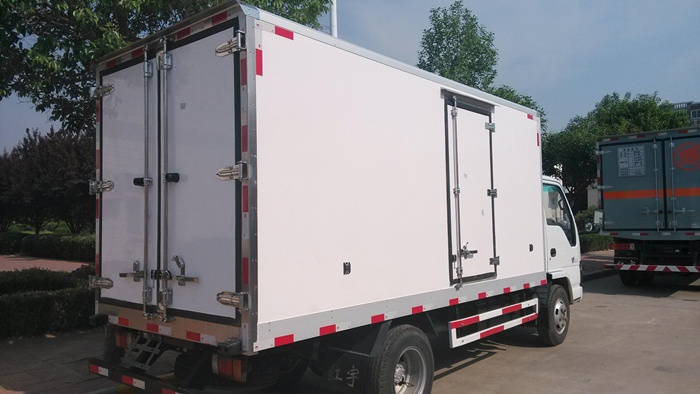

JMC light refrigerated truck
|
Truck?parameters |
||
|
Chassis?brands |
JMC |
|
|
Refrigerated?Truck? |
Model |
HYJ5060XLC |
|
? |
Traction |
4×2 |
|
? |
Cab： |
LL?singgle?-row?seat? |
|
? |
GVW(Kg) |
5480 |
|
? |
Load(Kg) |
2600 |
|
? |
Kerb?mass(Kg) |
2800 |
|
? |
The?overal?dimension(mm) |
5995×1920×2840 |
|
? |
?Cab?seats: |
2?or?3 |
|
? |
Approach?Angle/Departure?Angle(°) |
27/17.5 |
|
? |
Front/rear?overhang(mm) |
1015/1580 |
|
? |
Axles |
2 |
|
? |
Wheelbase(mm) |
3360 |
|
? |
Axle?load?(Kg) |
1650/2650 |
|
? |
the?max?speed(Km/h) |
100(km/h) |
|
The?truck?box |
The?truck?box?inside?dimension?(mm) |
4000/1750/1650 |
|
? |
Truck?Box?volume(m3) |
11.55 |
|
Chassis: |
Chassis?brand |
JMC |
|
? |
Chassis?model |
JX1060TGA23 |
|
? |
manufacture?enterprise |
??Jiangling?Motors?Co.?,?Ltd. |
|
? |
Overall?dimension(mm) |
5825/1880/2020 |
|
? |
Tyres |
6 |
|
? |
Tyre? |
7.00-16LT |
|
? |
Front?tread(mm) |
1385 |
|
? |
Rear?Track(mm) |
1425 |
|
? |
Steel?Springs? |
7/4+5 |
|
? |
Turning?diameter |
14m |
|
? |
Displacement?standard: |
GB17691-2005?China?Ⅲ |
|
Engine |
Fuel?type |
diesel |
|
? |
Engine?model |
JX493ZLQ3 |
|
? |
Engine?manufacturer |
Jiangling?Motors?Co.?,?Ltd. |
|
? |
power?(Kw) |
85kw/3600?r/min |
|
? |
Displacement(ml) |
2771 |
|
? |
Type: |
Liquid?cooling?.diesel?turbocharger |
|
? |
cylinder. |
Vertical?four-cylinder?. |
|
? |
speed |
5speed,1REAR |
|
? |
The?oil?tank?volume |
100L |
|
?Cab?air?conditioners |
Manufacture?enterprise |
JiangXi?xindian?truck?air?conditioning?systems?Co.,?Ltd. |
|
? |
Model |
XD308100 |
|
? |
Type |
Dependent |
|
? |
Cooling?capacity*（W） |
4.0 |
|

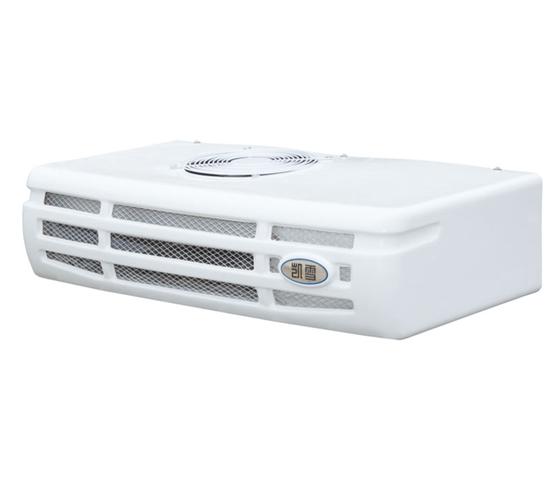

Refrigeration?units: |
? |
? |
|
? |
Barand?model |
Zhengzhou?KaiXue?KX-300 |
|
? |
Manufacturer: |
Zhengzhou?KaiXue?cold?chain?co.,?Ltd.?(?public?company) |
|
? |
refrigerant |
R404a |
|
? |
Cooling?capacity（W）-18/+30℃ |
1770?w?（Applicable?scope：10~20m3） |
|
? |
Air?Volume |
1000 |
|
? |
Condenser?dimension?(mm) |
860x553x230 |
|
? |
The?evaporator?dimension?(mm) |
845x646x230 |
Hongyu?refrigerated?truck?box?technical?specifications
?
The?refrigerated?truck?box?Detailed??:
(1)truck?body?panels?Structure:
Sandwich?structure，fiberglass+PU+fiberglass
(2)Truck?body?Material?:
1.The?Refrigeration?body?:full?sealed.All?the?double?surface?sandwich?polyurethane?panel?and?door?are
100mm?thickness.?
the?Fiberglass?plate?thickness?is?2.5mm?for?the?outer?and?inner?skin;
the?polyurethane?foam?density?is?45-50?kg/m3.(all?of?the?best?material?in?China?and?have?the?best?insulated?performance.

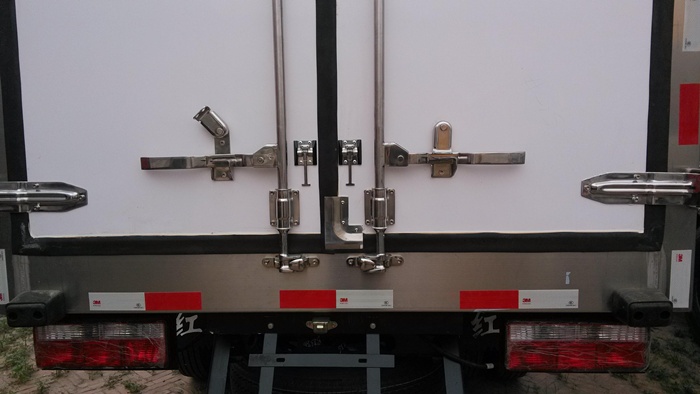

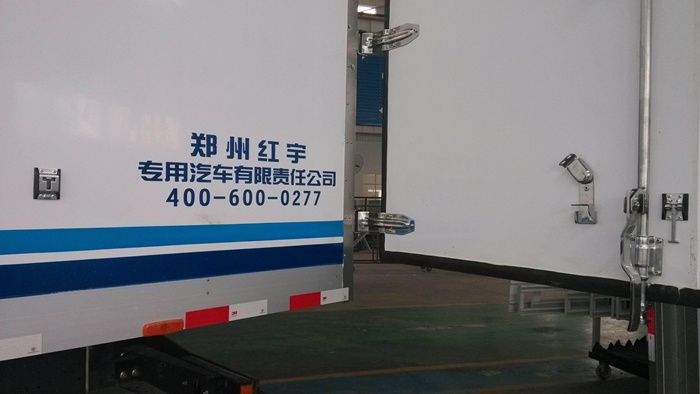

2.The?Hardware(the?door?frame?,hinges,lock,handle)?are?all?made?for?304?stainless?steel.
3.Aluminum?alloy?sides?and?304?stainless?steel?wrap?angle.
4.The?rubber?seal.60years?life?time?longth.
5.Professional?fiber?reinforced?priduction?line?,one-step?forming?of?sandwich?type,between?polyurethane?foam,aluminum?alloy?hemming,

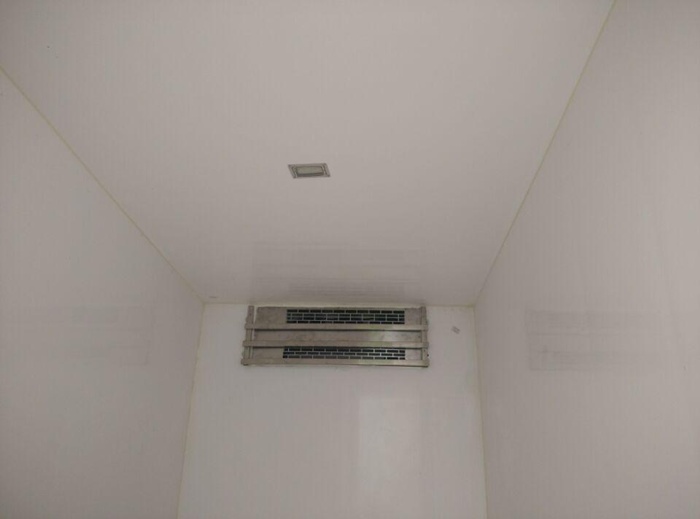

Wall(inside)equipped?with?a?deflector?ventilation?slots,backplane?ventilation?for?the?mature?Taluminum

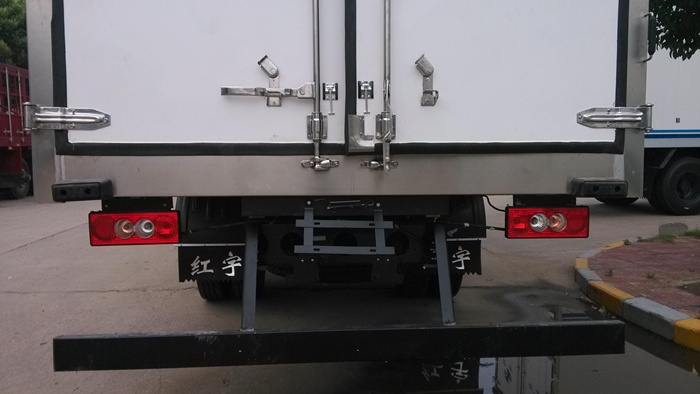

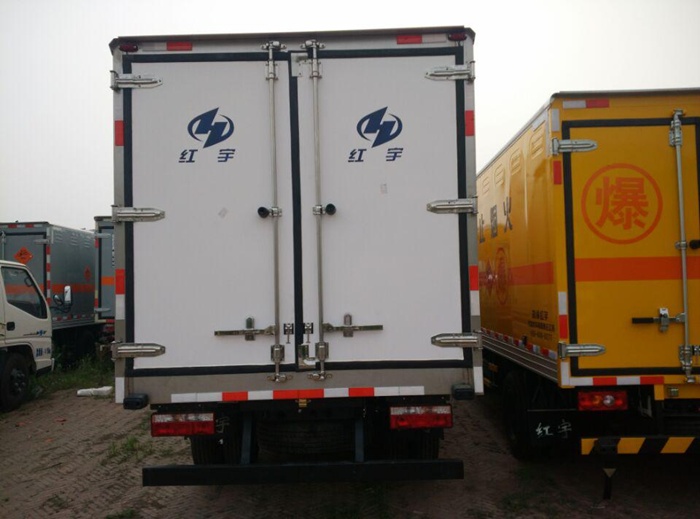

?alloy?,rear?double-locked?door?can?open270?degrees,with?a?fixed?linking,lighting?inside?,alarm?and?two?fixfures?for?tempurature?
recorder,
6.The?rear?compartment?with?foot?ladder.
7.The?side?door?is?optional.
?
?
?
?
After?sales?service
?
(1)?The?truck?chassis?,?truck?box?and?the?refrigeration?units?under?normal?usage,?
warranty?for?one?years?from?the?date?of?delivery.?and?free?offer?and?to
?maintain?the?
parts?in?one?year.
?
?The?refrigerated?truck?accessories?list:
1.The?refrigerated?truck??manufacturer's?certificate?;
2.?The?chassis?product?certification;
3.?The?refrigeration?unit??product?certification;
4.?The?refrigerated?truck?box?product?specification;
5.?The?chassis?product?specification;
6.?The?Refrigeration?units?product?specification;
7.?The?refrigeration?unit?maintenance?instruction?manual;
?
?
