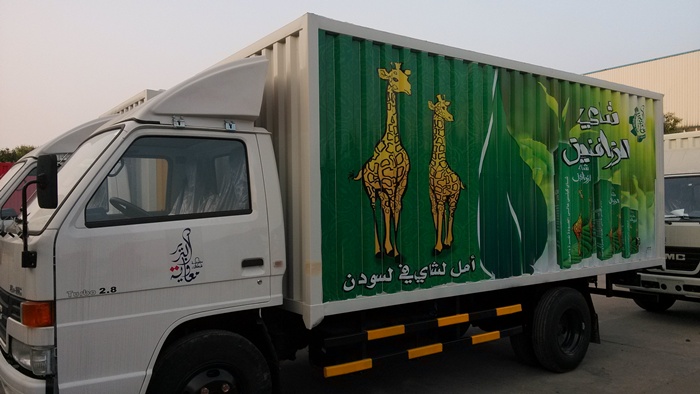

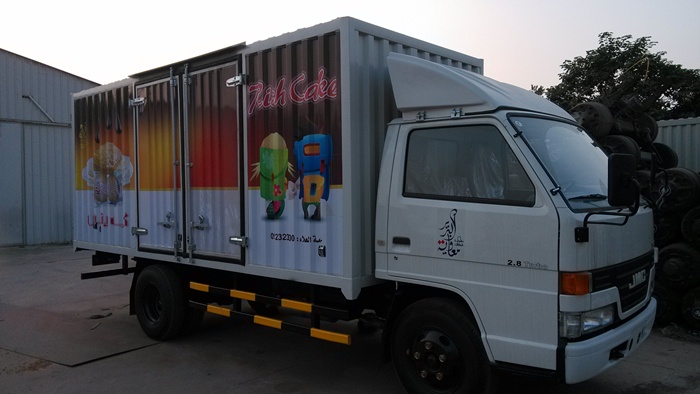

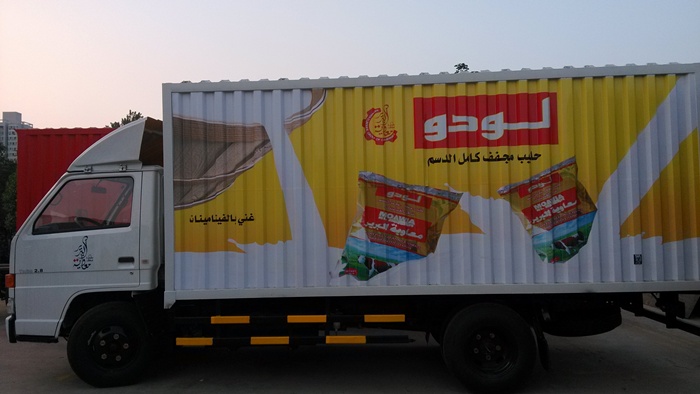

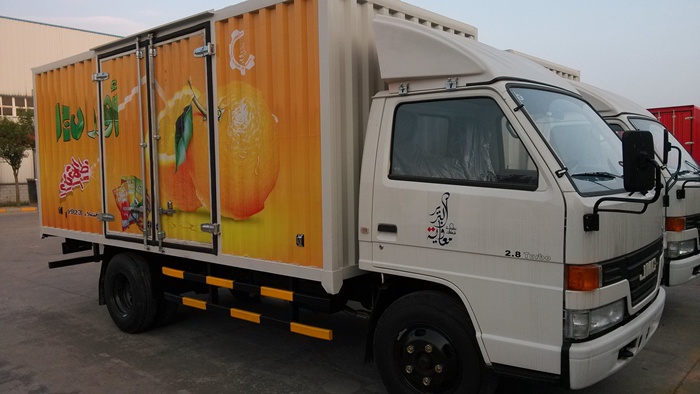

JMC box van truck

?

Truck?parameters
Chassis?brands		JMC
Refrigerated?Truck?	Model	HYJ5060XLC
	Traction	4×2
	Cab：	LL?singgle?-row?seat?
	GVW(Kg)	5480
	Load(Kg)	2600
	Kerb?mass(Kg)	2800
	The?overal?dimension(mm)	5995×1920×2840
	?Cab?seats:	2?or?3
	Approach?Angle/Departure?Angle(°)	27/17.5
	Front/rear?overhang(mm)	1015/1580
	Axles	2
	Wheelbase(mm)	3360
	Axle?load?(Kg)	1650/2650
	the?max?speed(Km/h)	100(km/h)
The?truck?box	The?truck?box?inside?dimension?(mm)	4000/1750/1650
	Truck?Box?volume(m3)	11.55
Chassis:	Chassis?brand	JMC
	Chassis?model	JX1060TGA23
	manufacture?enterprise	??Jiangling?Motors?Co.?,?Ltd.
	Overall?dimension(mm)	5825/1880/2020
	Tyres	6
	Tyre?	7.00-16LT
	Front?tread(mm)	1385
	Rear?Track(mm)	1425
	Steel?Springs?	7/4+5
	Turning?diameter	14m
	Displacement?standard:	GB17691-2005?China?Ⅲ
Engine	Fuel?type	diesel
	Engine?model	JX493ZLQ3
	Engine?manufacturer	Jiangling?Motors?Co.?,?Ltd.
	power?(Kw)	85kw/3600?r/min
	Displacement(ml)	2771
	Type:	Liquid?cooling?.diesel?turbocharger
	cylinder.	Vertical?four-cylinder?.
	speed	5speed,1REAR
	The?oil?tank?volume	100L
?Cab?air?conditioners	Manufacture?enterprise	JiangXi?xindian?truck?air?conditioning?systems?Co.,?Ltd.
	Model	XD308100
	Type	Dependent
	Cooling?capacity*（W）	4.0

Hongyu?refrigerated?truck?box?technical?specifications

?

The?refrigerated?truck?box?Detailed??:

(1)truck?body?panels?Structure:

Sandwich?structure，fiberglass+PU+fiberglass

(2)Truck?body?Material?:

1.The?Refrigeration?body?:full?sealed.All?the?double?surface?sandwich?polyurethane?panel?and?door?are?100mm?thickness.?

the?Fiberglass?plate?thickness?is?2.5mm?for?the?outer?and?inner?skin;

the?polyurethane?foam?density?is?45-50?kg/m3.(all?of?the?best?material?in?China?and?have?the?best?insulated?performance.

2.The?Hardware(the?door?frame?,hinges,lock,handle)?are?all?made?for?304?stainless?steel.

3.Aluminum?alloy?sides?and?304?stainless?steel?wrap?angle.

4.The?rubber?seal.60years?life?time?longth.

5.Professional?fiber?reinforced?priduction?line?,one-step?forming?of?sandwich?type,between?polyurethane?foam,aluminum?alloy?hemming,

Wall(inside)equipped?with?a?deflector?ventilation?slots,backplane?ventilation?for?the?mature?Taluminum?alloy?,rear?double-locked?door?can?open270?degrees,with?a?fixed?linking,lighting?inside?,alarm?and?two?fixfures?for?tempurature?recorder,

6.The?rear?compartment?with?foot?ladder.

7.The?side?door?is?optional.

?

?

?

?

?
