Cargo box van truck

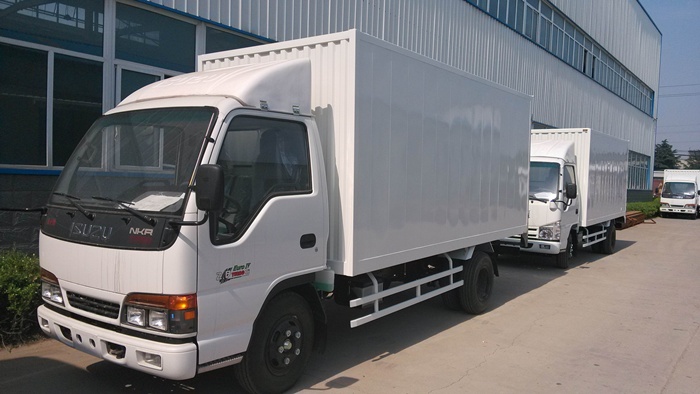

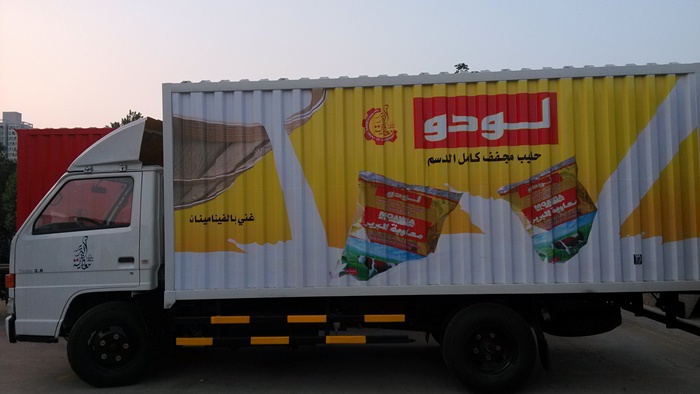

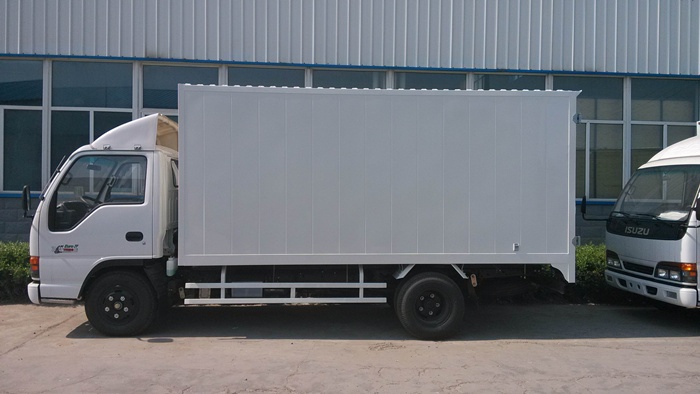

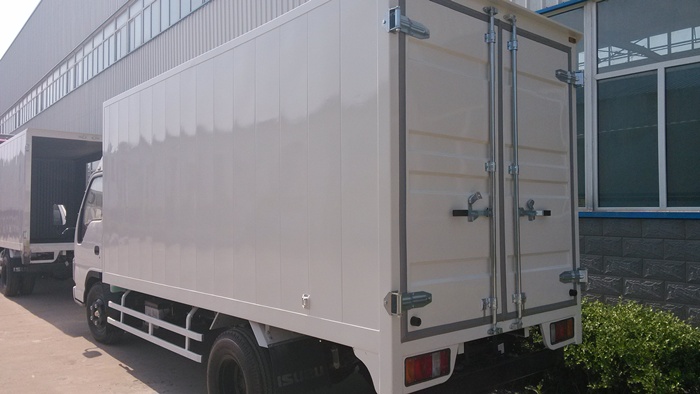

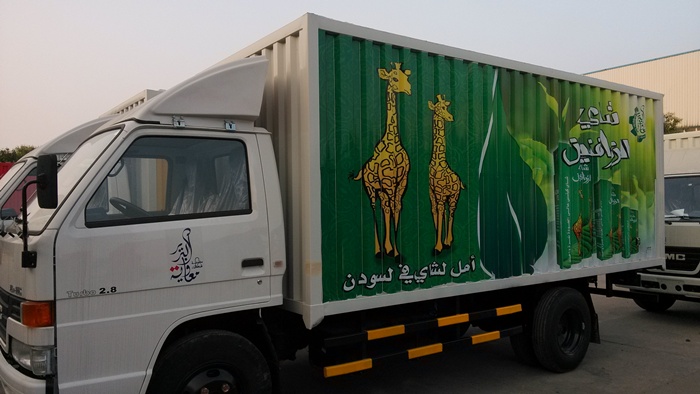

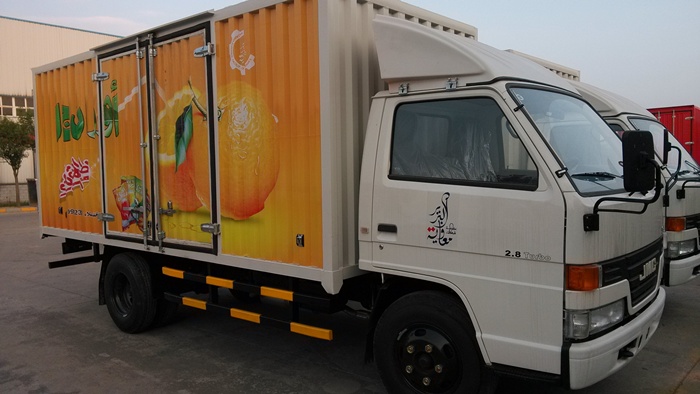

cargo box van truck photos:
?
?
?
?
|
HYJ5070XXY cargo van?truck??parameter |
|||
|
Vehicle?model： |
HYJ5070XXY?van?truck |
Chassis?Brands |
ISUZU |
|
Engine |
4KH1-TC |
Displacement(ml) |
2999 |
|
Power(kw) |
96 |
Fuel?type： |
Diesel?(mm) |
|
Chassis?model? |
NKR77LLPACJAY |
|
|
|
The?vehicle?overall?dimension： |
5995×2090×2730(mm) |
Box?van?inside?dimension： |
4180×1970×1720(mm) |
|
The?total?mass： |
7300(Kg) |
Outfit?mass： |
3240(Kg) |
|
Payload?： |
3930(Kg) |
Before?hanging?/?rear?overhang |
1015/1620(mm) |
|
Approach/departure?angle： |
24/15(°) |
Wheel?base? |
3360(mm) |
|
Axle?load： |
3000/4300 |
Max?speed： |
95(km/h) |
|
Axle?number： |
2 |
Springs?number： |
8/6+5 |
|
Tyre?numbers： |
6 |
Tyre?specification： |
7.50-15,7.50R15,7.00-16,7.00R16 |
|
Track?front： |
1504 |
Track?rear： |
1425 |
|
VIN: |
LWLDARHG××××××××× |
||
the truck box material is different for you choose.
The?CKD?aluminum?Truck?box for the cargo truck ?details?:
?
1)The?corrugated?aluminum?material?plate?thickness?:1.2mm?
(2)The?inner?plate?material?is?the?0.6mm?thickness?of?Galvanized?steel?material?.??????????????????????????????????????????????????????????????????????????
(3)?All?the?Rectagular?Steel?tube?size:40×80×1.5mm.?????????????????????????????????????????????????????????????
(4)Every?CKD?cargo?box?with?the?fender?and??guard?plate.the?frame?structure?with?the?Aluminum?corner?track.
(5)Camp:?steel?C?or?Steel?Omega?channel?.??
Floor:?2.5mm?diamond?steel?plate.
(6)with?the?lock,Inner?dome?light,Corner?body?lights?and?all?of?the?parts.
We?will?give?as?a?present?of?the?tool?box?if?you?need.
?
This?aluminum?material?have?the?best?corrosion?resistant?effect.and?light?weight.
?
Others:1.the?Cargo??box?Specification:??????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????
(1)?Outer?made?with?steel?plate.?Inner?made?with?steel?strips?or?steel?lath?in?Omega?channel.
Total?Thickness：?10?mm.
Inner?and?outer?use?galvanization?materials.The?box?outside?panel?is?the0.8mm?thickness?aluminum??material??,?the?inner?plate?material?is?the?0.6mm?thickness?Galvanized?steel.????Internal?coating?with?galvanized?steel?profiles?90?x?20?mm.?????????????????????????????????????????????????????????????????????????????????????????????????????????(2)Every??cargo?box?with?the?fender?and??guard?plate.the?frame?structure?one?with?the?Aluminum?or?steel?alloy?sides?and?the?stainless?steel?wrap?angle.?Rear?door?two?full?or?partial?opening?leaves.?
??Side?Door?in?the?amount?necessary?for?the?use?and?disposal.?
??Floor?in?plywood?fixed?to?the?base?by?self?tapping?screws.?
??Internal?coating?with?galvanized?steel?profiles?with?established?self-brocantes?screws.?
??Indoor?Lighting?ceiling?lights?with?a?switch?on?the?back?of?the?van.?
??Ceiling?on?flat?plate?to?prevent?accumulation?of?water.?
??Application?of?silicone?at?the?joints?of?boards?and?panels,?neutralizing?leaks.?
??rear?bumpers?as?standard.?
??Fenders?with?to?clay?rubber.?
??Metal?housing?for?tools.?Electrical?installation?standards?as?CONTRAN.?
??Reinforcing?the?closing?of?embedded?or?external?doors?as?the?best?suit?application.
?The?floor?is?made?of?steel?plate?3mm?thick.
-The?skirting?should?be?installed?on?the?floor?300mm?in?height?with?3?mm?thickness
?
