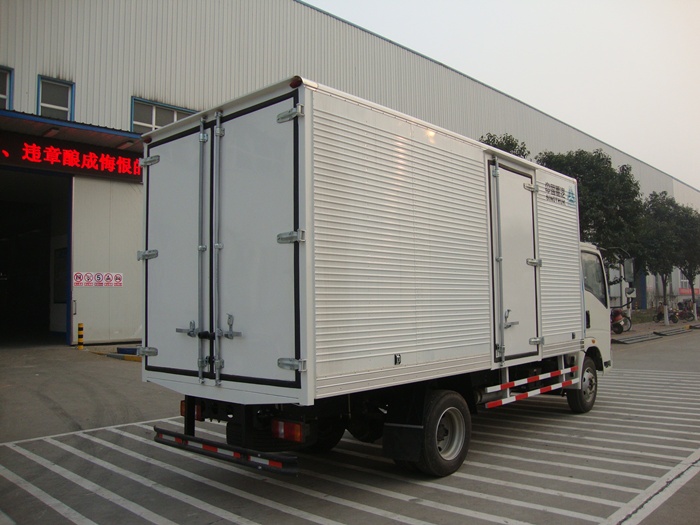

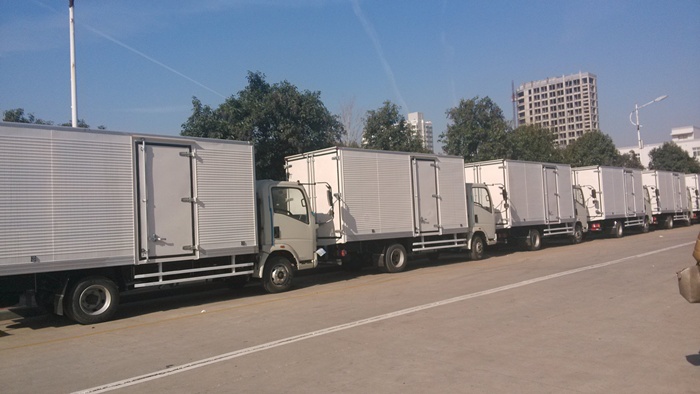

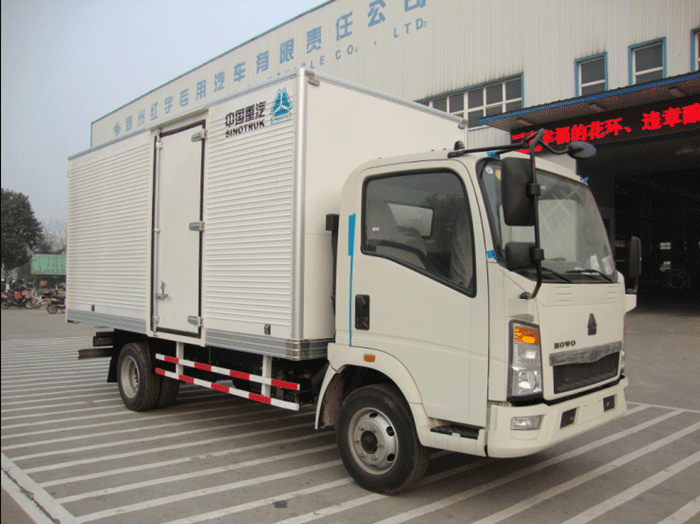

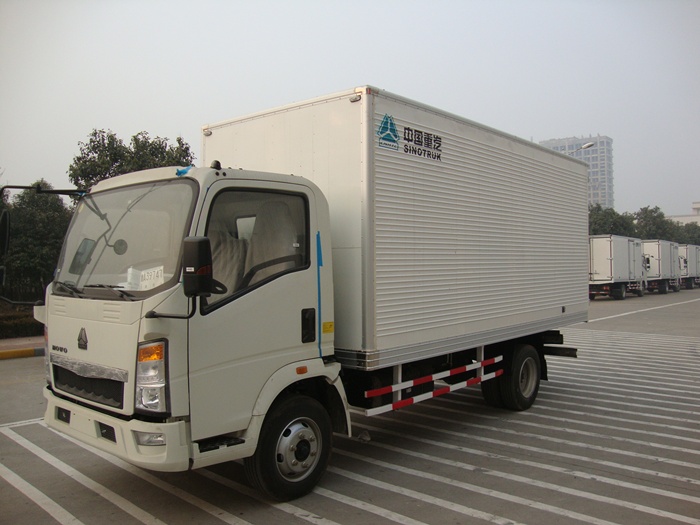

Aluminum cargo truck
?
Aluminum cargo truck PARAMETERS:
|
Vehicle?name： |
Box?van?truck? |
|
|
|
Chassis?model?： |
QL1070A1KAY |
||
|
Model?： |
HYJ5070XLCA |
||
|
Brand?： |
Hongyu |
manufacturer： |
Zhengzhou?hongyu?special?vehicle?Co.,?Ltd. |
|
Engine?model?： |
4KH1-TCG40 |
Engine?power： |
88 |
|
displacement： |
2999 |
Engine?manufacturer： |
?isuzu?(chongqing)?engine?co.,?LTD |
|
Fuel?type： |
diesel |
The?overall?dimension?(mm)： |
6900×2040×2970,3070 |
|
GVW(Kg)： |
7300 |
The?box?van?dimension??(mm)： |
5000×1800×1700,1800 |
|
Outfit?mass?(kg)： |
3550 |
Load?(kg)： |
3620 |
|
Gearbox?model?： |
MSB |
Cab?seatings： |
2 |
|
Department/approach?： |
24/14 |
Before?hanging?/?rear?overhang： |
1015/2070 |
|
Wheel?base(mm)： |
3815 |
Wheel?load： |
2580/4720 |
|
? axles： |
2 |
The?max?speed?(km/h)： |
105 |
|
Oil?： |
17.3 |
springs： |
8/6+5 |
|
tyres： |
6 |
Tyres?model?： |
7.00-16?14PR,7.00R16?14PR |
|
Front?Track： |
1504 |
back?Track： |
1425 |
|
Standard： |
GB17691-2005(China?Ⅳ),GB3847-2005 |
||
|
VIN： |
LWLDAA1G××××××××× |
||
?the truck box material is different for you choose.
The?CKD?aluminum?Truck?box for the cargo truck ?details?:
?
1)The?corrugated?aluminum?material?plate?thickness?:1.2mm?
(2)The?inner?plate?material?is?the?0.6mm?thickness?of?Galvanized?steel?material?.??????????????????????????????????????????????????????????????????????????
(3)?All?the?Rectagular?Steel?tube?size:40×80×1.5mm.?????????????????????????????????????????????????????????????
(4)Every?CKD?cargo?box?with?the?fender?and??guard?plate.the?frame?structure?with?the?Aluminum?corner?track.
(5)Camp:?steel?C?or?Steel?Omega?channel?.??
Floor:?2.5mm?diamond?steel?plate.
(6)with?the?lock,Inner?dome?light,Corner?body?lights?and?all?of?the?parts.
We?will?give?as?a?present?of?the?tool?box?if?you?need.
?
This?aluminum?material?have?the?best?corrosion?resistant?effect.and?light?weight.
?
Others:1.the?Cargo??box?Specification:??????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????
(1)?Outer?made?with?steel?plate.?Inner?made?with?steel?strips?or?steel?lath?in?Omega?channel.
Total?Thickness：?10?mm.
Inner?and?outer?use?galvanization?materials.The?box?outside?panel?is?the0.8mm?thickness?aluminum??material??,?the?inner?plate?material?is?the?0.6mm?thickness?Galvanized?steel.????Internal?coating?with?galvanized?steel?profiles?90?x?20?mm.?????????????????????????????????????????????????????????????????????????????????????????????????????????(2)Every??cargo?box?with?the?fender?and??guard?plate.the?frame?structure?one?with?the?Aluminum?or?steel?alloy?sides?and?the?stainless?steel?wrap?angle.?Rear?door?two?full?or?partial?opening?leaves.?
??Side?Door?in?the?amount?necessary?for?the?use?and?disposal.?
??Floor?in?plywood?fixed?to?the?base?by?self?tapping?screws.?
??Internal?coating?with?galvanized?steel?profiles?with?established?self-brocantes?screws.?
??Indoor?Lighting?ceiling?lights?with?a?switch?on?the?back?of?the?van.?
??Ceiling?on?flat?plate?to?prevent?accumulation?of?water.?
??Application?of?silicone?at?the?joints?of?boards?and?panels,?neutralizing?leaks.?
??rear?bumpers?as?standard.?
??Fenders?with?to?clay?rubber.?
??Metal?housing?for?tools.?Electrical?installation?standards?as?CONTRAN.?
??Reinforcing?the?closing?of?embedded?or?external?doors?as?the?best?suit?application.
?The?floor?is?made?of?steel?plate?3mm?thick.
-The?skirting?should?be?installed?on?the?floor?300mm?in?height?with?3?mm?thickness
?
?
After?sales?service
?
(1)?The?truck?chassis?,?truck?box?and?the?refrigeration?units?under?normal?usage,?
warranty?for?one?years?from?the?date?of?delivery.?and?free?offer?and?to
?maintain?the?
parts?in?one?year.
?
?The?refrigerated?truck?accessories?list:
1.The?refrigerated?truck??manufacturer's?certificate?;
2.?The?chassis?product?certification;
3.?The?refrigeration?unit??product?certification;
4.?The?refrigerated?truck?box?product?specification;
5.?The?chassis?product?specification;
6.?The?Refrigeration?units?product?specification;
7.?The?refrigeration?unit?maintenance?instruction?manual;
?
?
