refrigerated Truck body panels

sandwich?panel?for?truck?body?Detailed??:

Our?common?sandwich?panel?for?truck?body?details?:

(1)truck?body?Structure:

Sandwich?structure，fiberglass+PU+fiberglass

(2)truck?body?Material?:

1.All?the?double?surface?sandwich?polyurethane?panel?and?door?are?100mm?thickness.?

?the?Fiberglass?plate?thickness?is?2.5mm?for?the?outer?and?inner?skin;the?polyurethane?foam?density?is?45-50?kg/m3.(all?of?the?best?material?in?China?and?have?the?best?insulated?performan

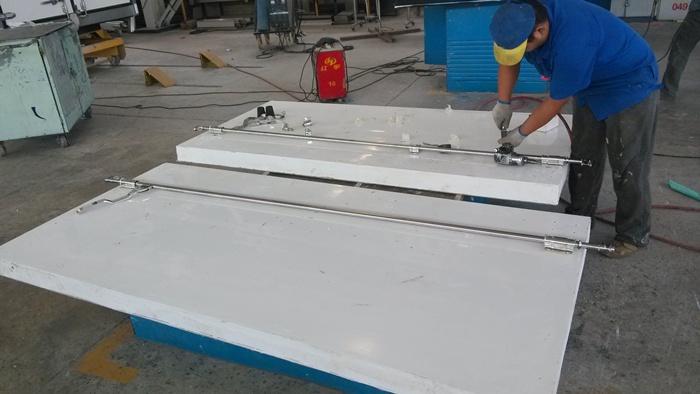

2.The?Hardware(the?door?frame?,hinge,lock,handle)?are?all?made?for?304?stainless?steel.

3.Aluminum?alloy?sides?and?304?stainless?steel?wrap?angle.

4.The?rubber?seal.60years?life?time?longth

(3)truck?body?sandwich?panel?for?truck?body?We?supply?:

1.The?thickness?can?be?changed?according?to?customer’s?requirements

60mm,80mm,100mm

?2.The?dimension?of?panel?can?be?chosen?at?the?follow?range:

Length?0-15000mm

Width?0-3100mm

Thickness?25-135mm

?

The?CKD?aluminum?Truck?box?details?:

?

1)The?corrugated?aluminum?material?plate?thickness?:1.2mm?

(2)The?inner?plate?material?is?the?0.6mm?thickness?of?Galvanized?steel?material?.??????????????????????????????????????????????????????????????????????????

(3)?All?the?Rectagular?Steel?tube?size:40×80×1.5mm.?????????????????????????????????????????????????????????????

(4)Every?CKD?cargo?box?with?the?fender?and??guard?plate.the?frame?structure?with?the?Aluminum?corner?track.

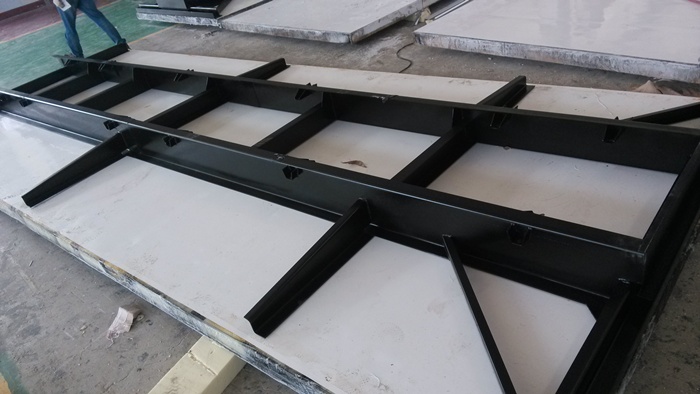

(5)Camp:?steel?C?or?Steel?Omega?channel?.??

Floor:?2.5mm?diamond?steel?plate.

(6)with?the?lock,Inner?dome?light,Corner?body?lights?and?all?of?the?parts.

We?will?give?as?a?present?of?the?tool?box?if?you?need.

?

This?aluminum?material?have?the?best?corrosion?resistant?effect.and?light?weight.

?

Others:1.the?Cargo??box?Specification:??????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????

(1)?Outer?made?with?steel?plate.?Inner?made?with?steel?strips?or?steel?lath?in?Omega?channel.

Total?Thickness：?10?mm.

Inner?and?outer?use?galvanization?materials.The?box?outside?panel?is?the0.8mm?thickness?aluminum??material??,?the?inner?plate?material?is?the?0.6mm?thickness?Galvanized?steel.????Internal?coating?with?galvanized?steel?profiles?90?x?20?mm.?????????????????????????????????????????????????????????????????????????????????????????????????????????(2)Every??cargo?box?with?the?fender?and??guard?plate.the?frame?structure?one?with?the?Aluminum?or?steel?alloy?sides?and?the?stainless?steel?wrap?angle.?Rear?door?two?full?or?partial?opening?leaves.?

??Side?Door?in?the?amount?necessary?for?the?use?and?disposal.?

??Floor?in?plywood?fixed?to?the?base?by?self?tapping?screws.?

??Internal?coating?with?galvanized?steel?profiles?with?established?self-brocantes?screws.?

??Indoor?Lighting?ceiling?lights?with?a?switch?on?the?back?of?the?van.?

??Ceiling?on?flat?plate?to?prevent?accumulation?of?water.?

??Application?of?silicone?at?the?joints?of?boards?and?panels,?neutralizing?leaks.?

??rear?bumpers?as?standard.?

??Fenders?with?to?clay?rubber.?

??Metal?housing?for?tools.?Electrical?installation?standards?as?CONTRAN.?

??Reinforcing?the?closing?of?embedded?or?external?doors?as?the?best?suit?application.

?The?floor?is?made?of?steel?plate?3mm?thick.

-The?skirting?should?be?installed?on?the?floor?300mm?in?height?with?3?mm?thickness

?
